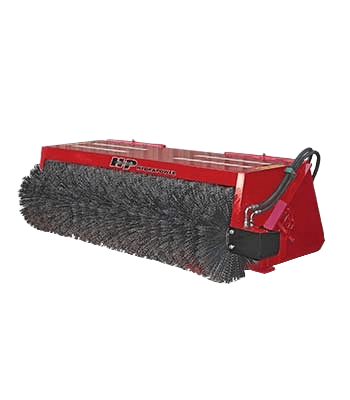

RW – Reverse Sweep Bucket Broom
Bucket sweeper attachments - RW – Reverse Sweep Bucket Broom
Our RW Reverse Sweep powered bucket broom is Australian made and recommended for mini skid steer loaders for general clean-up work and offers the operator the flexibility of either operating the broom in the forwards or reverse direction.
Expertise in Skid Steer Attachments
Helping Customers all over the World
Quality Machinery - Outstanding Service
Product description
The RW Reverse Sweep bucket broom is a forward/backwards mini skid steer broom bucket attachment. It features a sweeping width of 1,150mm, brush diameter of 350mm and bucket capacity of 0.1m3. The RW bucket broom is fitted with solid steel wheels with non-greasable agricultural bearings, to prevent the cutting edge digging into the sweep-up area. The main brush is driven directly off the hydraulic motor thereby eliminating chain and sprockets wear parts.
| Host Machine Size | Skid steer (wheeled & tracked) loader |
| Sweeping Width | 1600mm, 1700mm, 1800mm or 2000mm |
| Brush Diameter | 500mm |
| Direction of Travel when Sweeping |
Reverse |
| Bucket Capacity | 0.23m³ |
| Drive Mechanism | Direct drive via coupling |
| Side Broom Option | No |
| Hydraulic Flow Required |
35–90lpm |
| Cutting Edge | Bolt-On |
| Mass | 1600mm bucket — 325kg 1700mm bucket — 335kg 1800mm bucket — 345kg 2000mm bucket — 385kg |
