Angle Sweepers - PTO Series Angle Sweeper

Our PTO Series of angle sweepers are Australian made and recommended for 35-40hp tractors. The PTO drive tow behind Angle Sweepers fit directly on your tractor’s three-point linkage.

Get a Quote
SKU: PTO Series Angle Sweeper Category:
Expertise in Skid Steer Attachments
Helping Customers all over the World
Quality Machinery - Outstanding Service

Product description

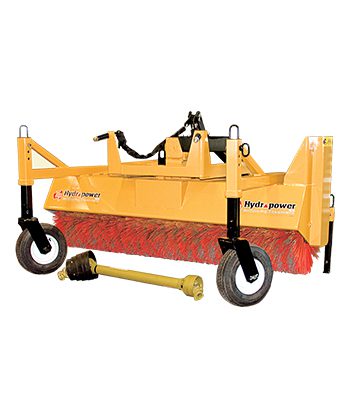

The PTO Series of angle sweepers comes in a range of sweeping widths 7311-01 (1800mm Ð 70Ó), 7311-02 (2000mm Ð 79Ó) and 7311-03 (2200mm Ð 87Ó). The PTO Series feature 600mm (24Ó) diameter poly and wire brush segments with a ratio of poly:wire segments that can be altered to suit your application. The unitsÕ brush speed is approximately 142 RPM (at 540 RPM from the PTO) and the sweeper can be set up to 30¡ left or right of centre, to form debris into a windrow. The units are supplied with its own PTO shaft and storage legs for parking the sweeper. Optional dual jockey wheels (as shown) and hydraulic angling available.

Host Machine
Tractor 35Ð50hp
Drive Option(s) PTO
Sweeping Widths 1800mm, 2000mm,
Brush Diameter 600mm
Number of
Jockey Wheels
One as standard,
optional dual
Angling Manual, optional
Hydraulic Flow
Max. Pressure 207bar (3000psi)
