Customisable Drill Rigs
Since 1981, Hydrapower Attachments Pty Ltd has been building custom drill rigs that are designed specifically for our customers and their equipment. We are the number one choice for a diverse range of drill rigs.
At Hydrapower Attachments Pty Ltd, we are proud to offer an extensive collection of drill rigs that are specifically designed to meet your unique needs. Whether you require a strata-specific model or a more general drill rig, we have the expertise and equipment to provide you with the perfect solution.
Our drill rigs are all constructed to the highest quality standards, ensuring reliable and efficient performance for years to come. If you are interested in drilling rigs for sale in Australia, our knowledgeable team is here to discuss your requirements and guide you to the ideal model from our extensive range.
Why Hydrapower for drill rigs?
We are the leaders in providing powered attachments for track steer and wheeled earthmoving equipment, including a comprehensive range of drilling rigs. From trenchers and brush mowers to road profilers and custom-built drill rigs, we have the equipment to meet your needs.
Experts in customisable drill rig solutions
Our drill rigs are designed to be highly customisable, allowing us to provide tailored solutions that meet the individual needs of our clients. With dimensions and capacities that are specific to each model, our range of drill rigs offers unparalleled performance and efficiency.
Subject to geotechnical formations and driller operation, we have included the table below with normal expected drill rigs depths. For further information, please do not hesitate to contact us.
| Trekker 2100 | Scout Mark V | Explorer 500 | Explorer 800 | HP 850 | |
|---|---|---|---|---|---|
| BQ | 275m | 480m | 670m | 1400m | 1500m |
| NQ | 200m | 365m | 350m | 800m | 1250m |
| HQ | 150m | 250m | 350m | 800m | 850m |
| PQ | 100m | 165m | 230m | 525m | 550m |
| DTH Hammer | 60m | 100m | 140m | 250m | 300m |
| Rotary Mud | 60m | 100m | 140m | 250m | 300m |
Our drill rig range
Whether you are looking for a standard drill rig or a purpose-built solution, we are the experts in powered drilling rig attachments for your equipment.

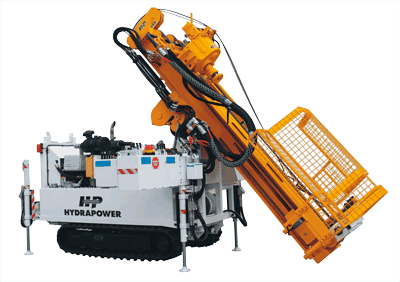

Trekker 2100 drill rigs
Our Trekker 2100 drill rigs are a top-performing solution for businesses seeking a medium-duty drilling rig. This versatile drill rig can be mounted on crawler track vehicles and trucks with a capacity of 3 tonnes or more, and it even has the capability to function as a standalone unit with its built-in Cummings 4 cylinder engine and power pack. Designed and manufactured with longevity and durability in mind, the Trekker 2100 drill rig is a smart investment for any business looking for a reliable and cost-effective drill rig. Whether you’re in need of a drill rig for mounting or a standalone unit, the Trekker 2100 drill rig is a top choice for businesses that value high-quality and outstanding value for money.
| Trekker 2100 | |
|---|---|
| Recommended Base (Minimum) | Choose from Crawler Tracks, 3T Truck or none at all |
| Rig Engine | 4 cylinder Cummins A2300T turbo motor with 60hp at 2800rpm |
| Rig Hydraulics | Sauer Danfoss porportionally controlled control valves Sauer closed loop pump on Rotary Drive Sauer open loop pump on auxiliary functions |
| Rotary Drive | Hydrapower gearbox — steel casing with floating hollow spindle and hydraulic head slide two Speed, 0–150rpm & 0–700rpm low speed torque to 2100Nm, high speed torque to 474Nm |
| Head Travel | 2.1m standard |
| Main Winch | Maximum pull is 2500kg. Maximum line speed is 28m/min |
| Wireline Winch | 1 Off, maximum pull is 780kg. Maximum line speed is 83m/min |
| Pulldown | Pull down capacity is 3100kg. Pull out capacity is 4400kg |
| Mast | Fitted with 1.8m mast dump for angle drilling. Standard length is 3.2m |
| Braekout Table | Optional fixed or split type table |
| Rod/Auger Guard | Optional, can be fitted with hydraulic lockout on head rotation |
| Tool Cabinet | Optional |
| Rig Body | Supplied with operator’s platform, (4) four stabiliser legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower red and black |
| Toolkit | Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine, and hydraulic pump test point pressure gauges |
Scout Mark V drill rigs
Our Scout Mark V drill rigs are the perfect solution for businesses in need of a custom-built drill rig that meets their specific drilling requirements and vehicle specifications. These drill rigs are designed to work with a minimum of 13 tonnes GVM 4×4 trucks and tracked crawlers with a load capacity of at least 6.3 tonnes. The durable Hydrapower gearbox in our Scout Mark V drill rigs delivers impressive slow running torque values of up to 2100Nm, making it a powerful and reliable option for your drilling needs. Additionally, the main winch in these drill rigs has a pulling capacity of 4200kg, making it an ideal choice for heavy-duty drilling projects. Whether you’re looking for a drill rig that is custom-built to suit your vehicle and drilling requirements, the Scout Mark V drill rig is the perfect solution.
| Scout Mark V | |
|---|---|
| Recommended Base (Minimum) | 4×4 Truck with a 13t GVM and a 4.5m wheelbase OR Tracked Crawler with 6.3t load capacity |
| Rig Engine | 4 cylinder Cummins CPAK-4BTA3.9-C turbo motor with 125hp at 2200rpm |
| Rig Hydraulics | Sauer Danfoss porportionally controlled control valves Sauer closed loop pump on Rotary Drive Sauer open loop pump on auxiliary functions |
| Rotary Drive | Hydrapower Gearbox — steel casing with floating hollow spindle and hydraulic head lock and swing. Two Speed, 0–150rpm & 0–700rpm low speed torque to 2100Nm, high speed torque to 474Nm |
| Head Travel | 5.1m standard, 6.8m optional |
| Main Winch | Maximum pull is 4200kg maximum line speed is 28m/min |
| Wireline Winch | (2) Two of in standard configuration. Maximum pull is 780kg. Maximum line speed is 83m/min |
| Pulldown | Electrically controlled with dial for speed control. Pull down capacity is 4400kg. Pull out capacity is 6500kg |
| Mast | Fitted with 1.8m mast dump for angle drilling. Standard length is 8.1m, supplied with hydraulically operated breakout spanner. Supplied with hydraulic circuit with quick- connect couplings for optional breakout table |
| Braekout Table | Optional fixed or split type table |
| Rod/Auger Guard | Optional, can be fitted with hydraulic lockout on head rotation |
| Tool Cabinet | Optional |
| Rig Body | Supplied with operator’s platform, (4) four stabilizer legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower red and black |
| Toolkit | Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine, and hydraulic pump test point pressure gauges |
Explorer 500 drill rigs
If you’re in need of powerful and highly efficient drill rigs for serious drilling projects, look no further than our Explorer 500 drill rigs. This top-performing drill rig can be custom-installed on your truck of choice, and our technical team recommends a minimum of 24 tonnes GVM with bogie drive and both diff and cross locks on a 4×6 configuration for optimal results. The Explorer 500 drill rig is designed to deliver outstanding performance and efficiency, making it the ideal choice for businesses in need of a high-quality drill rig. Whether you’re in need of a drill rig for heavy-duty drilling or a custom-installed unit, the Explorer 500 drill rig is the perfect solution.
| Explorer 500 | |
|---|---|
| Recommended Base (Minimum) | 4×6 truck with 24t GVM bogie drive with diff-lock and cross lock |
| Rig Engine | 6 cylinder Cummins CPAK-6BTA turbo after cooled with 176hp at 2500rpm |
| Rig Hydraulics | Sauer Danfoss porportionally controlled control valves Sauer closed loop pump on Rotary Drive Sauer open loop pump on auxiliary functions |
| Rotary Drive | Hydrapower Gearbox — steel casing with floating hollow spindle and hydraulic head lock and swing. Two Speed, 0–225rpm & 0–966rpm. Low speed torque to 4150Nm, high speed torque to 966Nm |
| Head Travel | 6.8m |
| Main Winch | Maximum pull is 4200kg Maximum line speed is 28m/min |
| Wireline Winch | (1) One of in standard configuration. Maximum pull is 780kg. Maximum line speed is 83m/min |
| Pulldown | Electrically controlled with dial for speed control. Pull down capacity is 7000kg. Pull out capacity is 11500kg |
| Mast | Fitted with 2.0m mast dump for angle drilling. Standard length is 10m, supplied with hydraulically operated breakout spanner and top pulley swivel. Supplied with hydraulic circuit with quick-connect couplings for optional breakout table |
| Braekout Table | Optional split type table |
| Rod/Auger Guard | Optional, can be fitted with hydraulic lockout on head rotation |
| Tool Cabinet | Optional |
| Rig Body | Supplied with operator’s platform, (4) four stabiliser legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower red and black |
| Toolkit | Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine, and hydraulic pump test point pressure gauges |
Explorer 800 drill rigs
The Explorer 800 drill rig is the ultimate solution for businesses in need of a powerful and reliable drilling rig for even the harshest environments. As the bigger brother in our Explorer range of drill rigs, the Explorer 800 delivers all of the drilling capacity you could possibly need. The 6 cylinder Cummings diesel unit, complete with after cooler, provides an impressive 176 horse power at 2500rpm, making it a top-performing drill rig. With a main winch line pull of 8000kg, the Explorer 800 drill rig has all of the drilling power you need to tackle even the toughest projects. Whether you’re looking for a drill rig with the power and capacity to handle the harshest environments, the Explorer 800 drill rig is the perfect solution.
| Explorer 800 | |
|---|---|
| Recommended Host Machine | 8×8 or 8×4 Truck with 24 t GVM bogie drive with diff-lock and cross lock |
| Rig Engine | 6 cylinder Cummins CPAK-6BTA turbo after cooled with 176hp at 2500rpm |
| Rig Hydraulics | Sauer Danfoss proportionally controlled control valves. Sauer closed loop pump on rotary drive. Sauer open loop pump on auxiliary functions |
| Rotary Drive | Hydrapower Gearbox — Steel Casing with floating hollow spindle and hydraulic head lock and swing. Two Speed, 0 –225rpm & 0–966rpm low speed torque to 4150Nm, high speed torque to 966Nm |
| Head Travel | 6.8m |
| Main Winch | Maximum pull is 8000kg. Maximum line speed is 60m/min |
| Wireline Winch | (1) One of in standard configuration. Maximum pull is 780kg. Maximum line speed is 83m/min |
| Pulldown | Electrically controlled with dial for speed control. Pull down capacity is 7000kg. Pull out capacity is 11500kg |
| Mast | Fitted with 2.0m mast dump for angle drilling. Standard length is 10m, supplied with hydraulically operated breakout spanner and top pulley swivel. Supplied with hydraulic circuit with quick-connect couplings for optional breakout table |
| Braekout Table | Optional split type table |
| Rod/Auger Guard | Optional, can be fitted with hydraulic lockout on head rotation |
| Tool Cabinet | Optional |
| Rig Body | Supplied with operator’s platform and offsider’s platform, (4) four stabiliser legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower red and black |
| Toolkit | Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine and hydraulic pump test point pressure gauges |
HP 850 drill rigs
Our HP 850 drill rigs are the ultimate solution for businesses looking for high-performing, truck-borne drilling rigs. With its durable construction and ability to deliver on the client’s expectations, the HP 850 drill rig is a top choice for businesses looking for a reliable and cost-effective drilling rig. Ideal for use in the harsh Australian environment, the HP 850 drill rig is designed to provide many years of service. For optimal performance, our technical team recommends a minimum of 24 tonnes GVM and 8×8 wheel drive to transport the HP 850 drill rig to and from job sites. If you’re looking for a drill rig that offers the ultimate combination of performance, durability, and value for money, the HP 850 drill rig is the perfect choice.
| Explorer 500 | |
|---|---|
| Recommended Base (Minimum) | 8×8 Truck with 24t GVM bogie drive with diff-lock and cross lock Dependant on whether On- board AR is required. |
| Rig Engine | Standard Cummins (260hp at 2500rpm) |
| Rig Hydraulics | Sauer Danfoss proportionally controlled control valves. Sauer closed loop pump on rotary drive. Sauer open loop pump on auxiliary functions |
| Rotary Drive | Hydrapower Gearbox — steel casing with floating hollow spindle and hydraulic head lock and swing. Variable speed, 0–1400rpm low speed torque to 8700Nm |
| Head Travel | 7.0m |
| Main Winch | Maximum pull is 10,000kg. Maximum line speed is 60m/min. Overspool protection device |
| Wireline Winch | 1400m with auto spooler. Maximum pull is 2000kg. Maximum line speed is 140m/min |
| Pulldown | Hydraulically controlled with dial for speed control. Pull down capacity is 10,000kg. Pull out capacity is 16,500kg |
| Mast | Fitted with 2.0m mast dump for angle drilling. Standard length is 10m, supplied with hydraulically operated breakout spanner and top pulley swivel. Supplied with hydraulic circuit with quick- connect couplings for optional breakout table |
| Braekout Table | Optional split type table |
| Rod/Auger Guard | Optional, can be fitted with hydraulic lockout on head rotation |
| Tool Cabinet | Optional |
| Rig Body | Supplied with operator’s platform and offsider’s platform, (4) four stabiliser legs with burst valve protection and fuel tank. Rig body and mast painted in Hydrapower red and black |
| Toolkit | Flags for rear of mast, mast lock plates, parts and maintenance manual for rig and engine and hydraulic pump test point pressure gauges |
